OUKE Acrylic Plexiglass Principle And Advantages Of Laser Cutting
What is acrylic laser cutting?

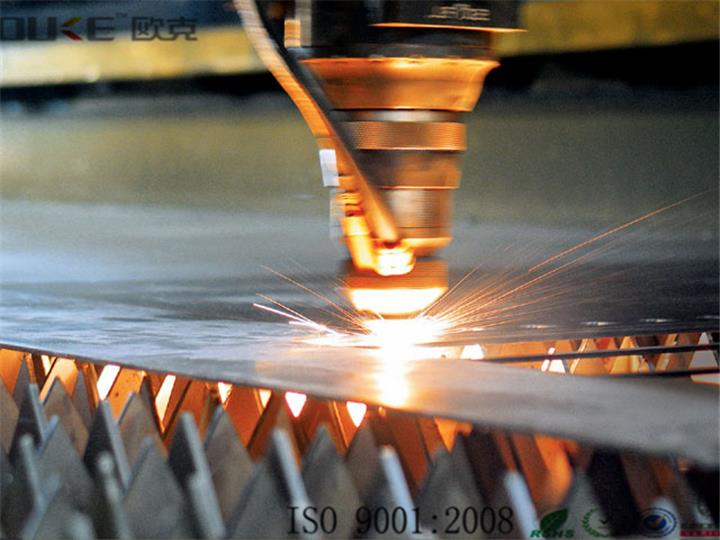

Acrylic laser cutting is a focusing lens to focus the laser beam on the surface of the acrylic, so that the acrylic will be melted. while with the laser beam coaxial compressed gas blowing the melted acrylic, and the laser beam and acrylic along a certain trajectory for relative movement, thus Forming a certain shape of the slit.
The significant advantages of plexiglass laser cutting processing acrylic
1. Fast speed
Cutting speed can reach to 10m / min, the maximum positioning speed can reach to 70m / min, and it’s much faster than the speed of line cutting.
2. Narrow kerf width
The laser beam is focused into a small spot, so that the focal point reaches a high power density. The material is quickly heated to the degree of gasification, and the pores are formed by evaporation. As the beam and the material relative to the linear movement, the hole form a narrow width of the slit. The width of the incision is generally 0.10 ~ 0.20mm.
3. High precision
Positioning accuracy of 0.05mm, repeat positioning accuracy of 0.02mm.
4. Good cutting quality
No contact cutting, trimming heat affected very small, basically no workpiece thermal deformation, completely avoid the formation of the material when the collapse of the scissors, slits generally do not need secondary processing.
5. Smooth cut surface
Cutting surface is without burr, incision surface roughness is generally controlled within Ra12.5 or less.
6. Will not damage the workpiece
The laser cutting head does not come into contact with the material surface to ensure that it does not scratch the workpiece.
7. Without being affected by the hardness of the material being cut
Laser on steel plate, stainless steel, aluminum alloy, hard alloy and other material, no matter what kind of hardness, they can be no deformation cutting.
8. Not affected by the shape of the workpiece
Laser processing is flexible, you can process any pattern, and you can cut pipes and other profiles.
9. Can cut non-metallic
Such as plastic, wood, PVC, leather, textiles, acrylic and so on.
10. Save material
Using a computer programming, you can put the shape of the whole product of the whole board material sets of cutting, to maximize the utilization of materials.
11. Saving mold investment
Laser processing without mold, no mold consumption, do not need to repair the mold, saving the replacement mold time, thus saving processing costs and reducing production costs, especially for large products processing.
